THE GATEWAY MODEL

Cost: $45,000 base price (RV Connections)

Square Footage:
160 square foot

Details:
This Park Model unit provides all the amenities of home in a small footprint. It is perfect for the tiny home lover or on the go camper who wants the amenities of a home away from home.

Dimensions:
20’ x 8’ x 8’

BUILT TO STANDARD

•All ekō models are built to engineered blueprints and certified through stringent quality procedures and inspections.

•ekō is a licensed  modular manufacturer through multiple states.

•All park model options are certified and inspected using ANSI 119.5 and NFPA 70.

•Park Models are Inspected by:

•National Organization of Alternative Housing

learn more

"GATEWAY" CONTAINER FEATURES & SPECS

STRUCTURE

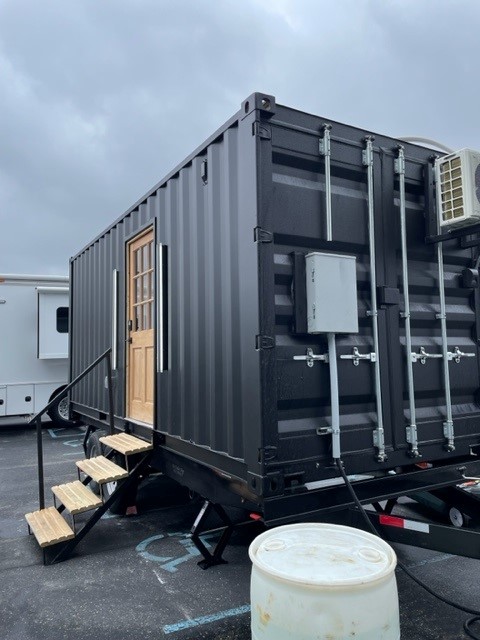

ekō Homes are built with an up-cycled shipping container consisting of corrosive resistant high-strength, low-alloy, corten steel coated with a marine grade enamel. Upon arrival into the manufacturing facility, The container is touched up with wire brush and sanded removing any impurities before being cleaned. Once cleaned a primer coating is added to the container prior to an added coat of exterior grade paint.

Learn more
  • Container Types Utilized:
    1 Trip 20’ x 8’ x 8’ ISO Container

  • Dimensions: Two Containers Stacked Exterior Length: 20’
    Exterior Height:
    8’
    Exterior Width:
    8’
    Interior Length:
    18.875’
    Interior Height:
    7.875’
    Interior Width:
    7.16’
    Weight:
    ~10,000lbs (Trailer Weight Included)

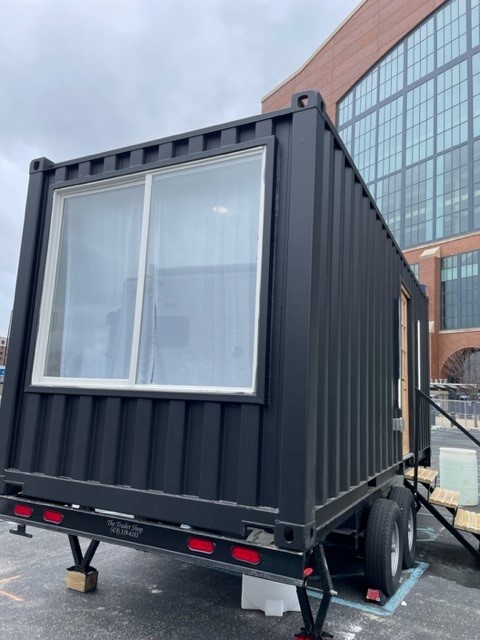

  • Trailer Specification:

    20’ Container Trailer
    Deck Length:
    20’
    Deck Width:
    8’
    Paint:
    Etched Primed and Painted
    Twist lock:
    Cast Steel at ISO Corners Bumper Pull
    (2) Tandem 7,000 lb
    Straight Axles
    Electric Brakes with Lights
    included

Container - Specifications

EXTERIOR & INTERIOR


Exterior:
Sherwin Williams: DTM Metal Acrylic Bonding Primer

Direct to Metal water-based acrylic Bonding Primer applied to the exterior of the container as a protective coating to maintain long life of the container.

Sherwin Williams: Exterior Grade Multi-Acrylic Paint – Multiple colors and finishes available.

Interior: Sherwin Williams: Pro Mar 200 Zero VOC Latex Paint

Complies with LEED, MPI, GREEN GUARD, Environmental Institute (GEI) and other green guidelines and regulations. Anti-microbial agents inhibit the growth of mold and mildew on the paint surface.

Exterior Windows:

Vinyl Single Hung Weld in Window: High performance Low-E + Argon gas filled insulated glass for heightened thermal energy efficiency with Four-point welded vinyl main frame attached to steel framing.

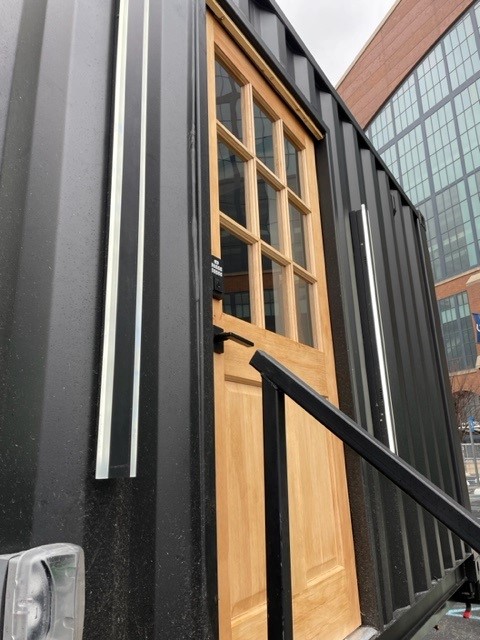

Exterior Doors:

Clear Low-E Glass Brick mold, Double PaneDoors Attached to steel framing.

Interior Doors:

36” x 80” Barn Door – 0.25” x 4’ x 8’ Poplar Sanded Plywood trimmed with 1”x 4” Pine attached by Sliding Track Hardware Kit

36” x 80” 6 panel Hollow Core MoldedComposite Single Pre-hung Interior Door

Interior Framing: 2”x 4” Wood Framed Stud Walls throughout unit.

Insulation: ASTM C518 R value

Ceiling / Floor: R-22 Closed Cell FoamInsulation
2-ComponentPoly/Iso closed-cell polyurethane spray foam.

Walls: R-15 Faced Batt InsulationFiberglas Batt insulation, Green guard gold certified

Wall Systems:

Finish Level:
Level 4

Drywall Type 1: 0.5” Fire resistant gypsum board; 0.5”.

Drywall Type 2: 0.5” Water resistant gypsum board.

Flooring: Laminate Flooring - Waterproof for 24 hours; 10 mm total thickness including foam backer and Vapor Barrier.

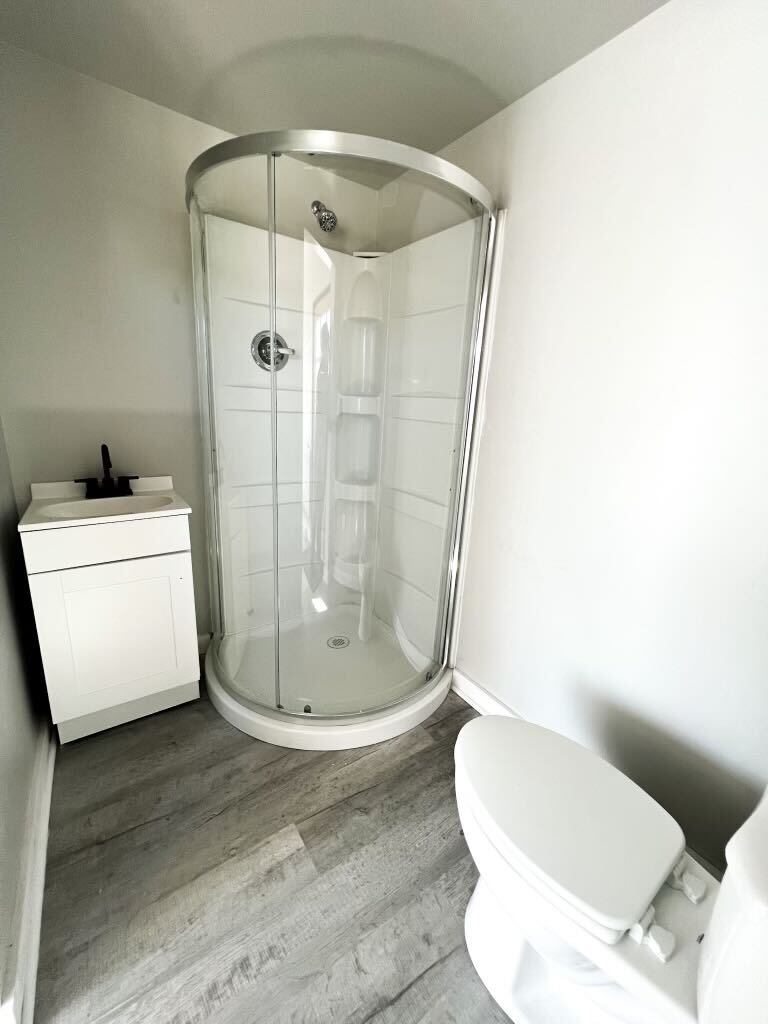

Bathroom:
24” Vanity with Stainless Steel bowl Single Lever Handle Lavatory Faucet
30”x 60” Acrylic Alcove Shower
Ergonomic Toilet 1.6 GPM
40 CFM Exhaust Fan, UL Listed and HVI-2100 Certified.

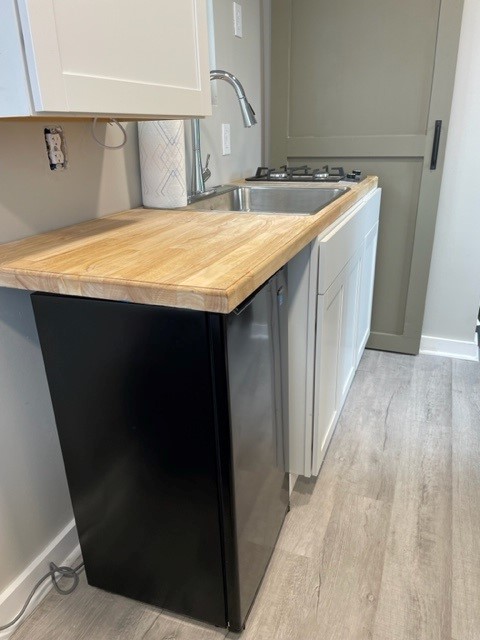

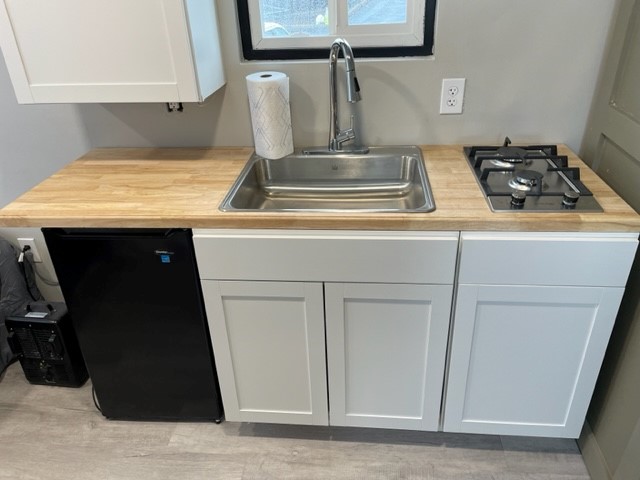

Kitchen:
Fixtures:
25”x 22” Single Hole Stainless Steel Sink with Pull Down Single
Lever Single Mount Faucet.

Cabinet / Countertops:
1”Butcher Block Countertop
12"Base cabinet
30"Base Cabinet

Kitchen:
Mini-Fridge
Low Watt Microwave
Drop-in 2 Burner Propane Cooktop

HVAC:
9,000 BTU Mini-Split Unit with an energy efficient 22 SEER Rating Dual split, Wall Mounted, with Remote Control and Wifi Control.

Water Heater:
Propane Tankless Water Heater

Water Pressure Rating: 50 psi (max 80 psi)

Water Piping: High-Density Cross-Linked Polyethylene
(HDPE) PEX piping

Waste Piping: Highly-Durable Schedule-40 PVCPiping

Waste Openings: 1 RV Connection

Vent Openings: 3

Water Intake Port: 1 RV Connection

Shut Off-Valves: At all fixtures

Plumbing Testing:

Water Supply Pressure Test - IPC 312.5

Water Tightness Test - IRC P2503.5.2

Testing of Backflow Prevention Assemblies- IPC 312.9

DWV System Test - IPC 312.2 and 312.3

Window Leak Test - Internal Standard8.6.2

50 RV Hook-Up: 6-Space, 6-Circuit Outdoor Main Breaker Plug-On Neutral Load Center.

Hardwired Smoke and Carbon Monoxide Detectors:
Photo electric smoke sensor and carbon monoxide detectors. Tamper-resistant with 9V backup battery.

Ceiling Lights:
6" Slim Recessed Lighting with junction Box

Exterior Lights:
Exterior LED Wall MOD Sconce Light

Exterior: Duplex Receptacle:
Weather resistant outdoor 20 amp125 volt self grounding outlet

Interior Duplex Receptacle Outlets:
15 amp, 125 volt tamper resistant outlets.

Interior Duplex GFCI Receptacle Outlets:
15 amp, 125 volt tamper resistant outlets.

Refrigerator Receptacle:
Wall mounted, 15 amp, 125 volt.

Television/Data Jacks:
Category 5e jack for ethernet, internet, phone. UL listed 2.4 GHz plated jack for A/V components, from standard TV to satellite TV.

Electrical Testing:
Dielectric Test - NEC 550.17 a
Continuity Test NEC 550.17 b
Polarity Test NEC 550.17 b
Electrical Operational Test NEC 550.17 b
