Base Price: $23,000
*before taxes, delivery, and set
Square Footage: 160 square foot
Details: Open Area
120V Electrical Power

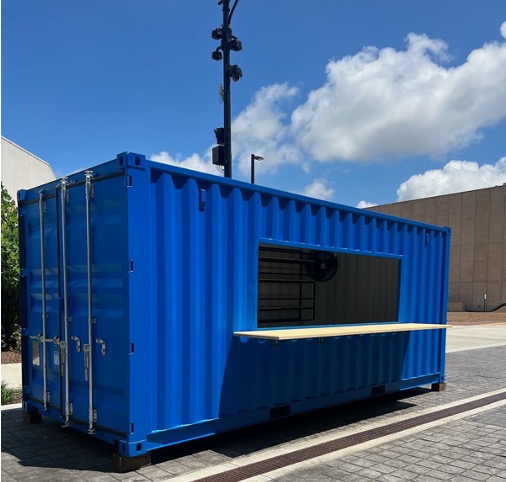

Easily Deployable Retail Stand
Exterior Dimensions: 20’ L x 8’ W x 8’ H
ekō containers are built with an up-cycled shipping container consisting of corrosive resistant high-strength, low-alloy, corten steel coated with a marine grade enamel. Upon arrival into the manufacturing facility, The container is touched up with wire brush and sanded removing any impurities before being cleaned. Once cleaned a primer coating is added to the container prior to an added coat of exterior grade paint.
Container Types Utilized:
20’ x 8’ x 8’ ISO Container
Dimensions: (1) 20’ ISO Container
20’ Storage Unit
Exterior Length: 20’
Exterior Height: 8’
Exterior Width: 8’
Interior Length: 18.875’
Interior Height: 7.875’
Interior Width: 7.16’
Weight: ~7,000lbs –Finished Weight)
14-gauge vertically continuous corrugated steel panels.
7-gauge tubular, cold-formed channel section steel.
14-gauge die-stamped steel sheets.
4-gauge single piece, pressed open section steel.
18 x 8 gauge pressed channel section steel.
1” marine grade plywood
Cast steel corner castings produced according to ISO 1161:1984. Castings can be used to lift and move the container during the setting period of the build. As well as locking the container into its foundation.
ISO container slab level lock type 4 welded to an 8” embedment plate with ¾” x 5” nelson studs.
Original 11-gauge corten steel double outswing doors with 270° swing radius.
- Sherwin Williams DTM Metal Acrylic Bonding Primer
- Sherwin Williams Exterior Grade Multi-Acrylic Paint - Interior and Exterior

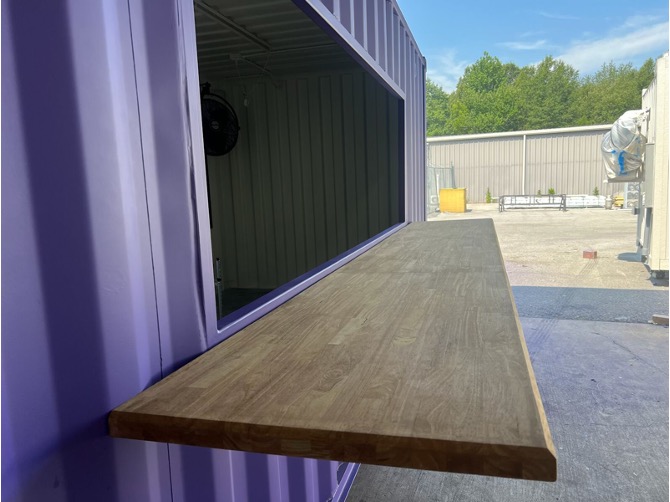

10' x 5' CutOut Section with Reinforced 2" x 2" Metal Tube

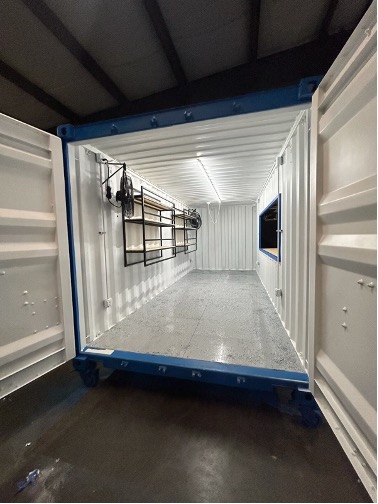

Commercial Epoxy Flooring with Anti-Slip Flakes
Protective Roof Coating
- (4) Basic 120VGFI Electrical outlets
- Barrina LED T5 Integrated Single Fixture, 4FT Sections
- (4)Weatherproof 15 Amp Outlets
- Illuminated Marquee Sign of Choice
