Cost: $53,000 base price
Square Footage: 320 square foot
Details: 1 office room,1 half bathroom, 1 central area, 1 20’ x 8’ storage area
Exterior Dimensions:
40’ L x 8’ W x 8’ H
20’ L x 8’ W x 8’ H
ekō Homes are built with an up-cycled shipping container consisting of corrosive resistant high-strength, low-alloy, corten steel coated with a marine grade enamel. Upon arrival into the manufacturing facility, The container is touched up with wire brush and sanded removing any impurities before being cleaned. Once cleaned a primer coating is added to the container prior to an added coat of exterior grade paint.
Container Types Utilized:
40’ x 8’ x 8’ ISO Container
20’ x 8’ x 8’ ISO Container

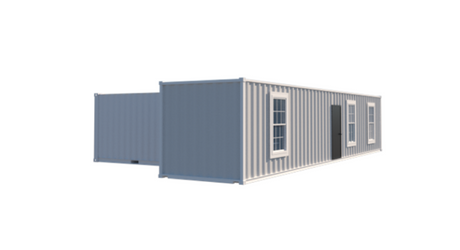

Dimensions: (1) 40’ + (1) 20’ ISO Container
40’ Unit
Exterior Length: 40’
Exterior Height: 9.6’
Exterior Width: 8’
Interior Length: 38.875’
Interior Height: 7.875’
Interior Width: 7.16’
20’ Storage Unit
Exterior Length: 20’
Exterior Height: 8’
Exterior Width: 8’
Interior Length: 18.875’
Interior Height: 7.875’
Interior Width: 7.16’
Weight: ~20,000lbs(Both Container Units Finished)
14-gauge vertically continuous corrugated steel panels.
7-gauge tubular, cold-formed channel section steel.
14-gauge die-stamped steel sheets.
4-gauge single piece, pressed open section steel.
18 x 8 gauge pressed channel section steel.
1” marine grade plywood
Cast steel corner castings produced according to ISO 1161:1984. Castings can be used to lift and move the container during the setting period of the build. As well as locking the container into its foundation.
ISO container slab level lock type 4 welded to an 8” embedment plate with ¾” x 5” nelson studs.
Original 11-gauge corten steel double outswing doors with 270° swing radius.
Exterior: Sherwin Williams: DTM Metal Acrylic Bonding Primer
Direct to Metal water-based acrylic Bonding Primer applied to the exterior of the container as a protective coating to maintain long life of the container.
Sherwin Williams: Exterior Grade Multi-Acrylic Paint – Multiple colors and finishes available.
Interior: Sherwin Williams: Pro Mar 200 Zero VOC Latex Paint
Complies with LEED, MPI, GREEN GUARD, Environmental Institute (GEI) and other green guidelines and regulations. Anti-microbial agents inhibit the growth of mold and mildew on the paint surface.
Exterior Windows:
Vinyl Single Hung Weld in Window: High performance Low-E + Argon gas filled insulated glass for heightened thermal energy efficiency with Four-point welded vinyl main frame attached to steel framing.
Exterior Doors:
Clear Low-E Glass Brick mold, Double PaneDoors Attached to steel framing.

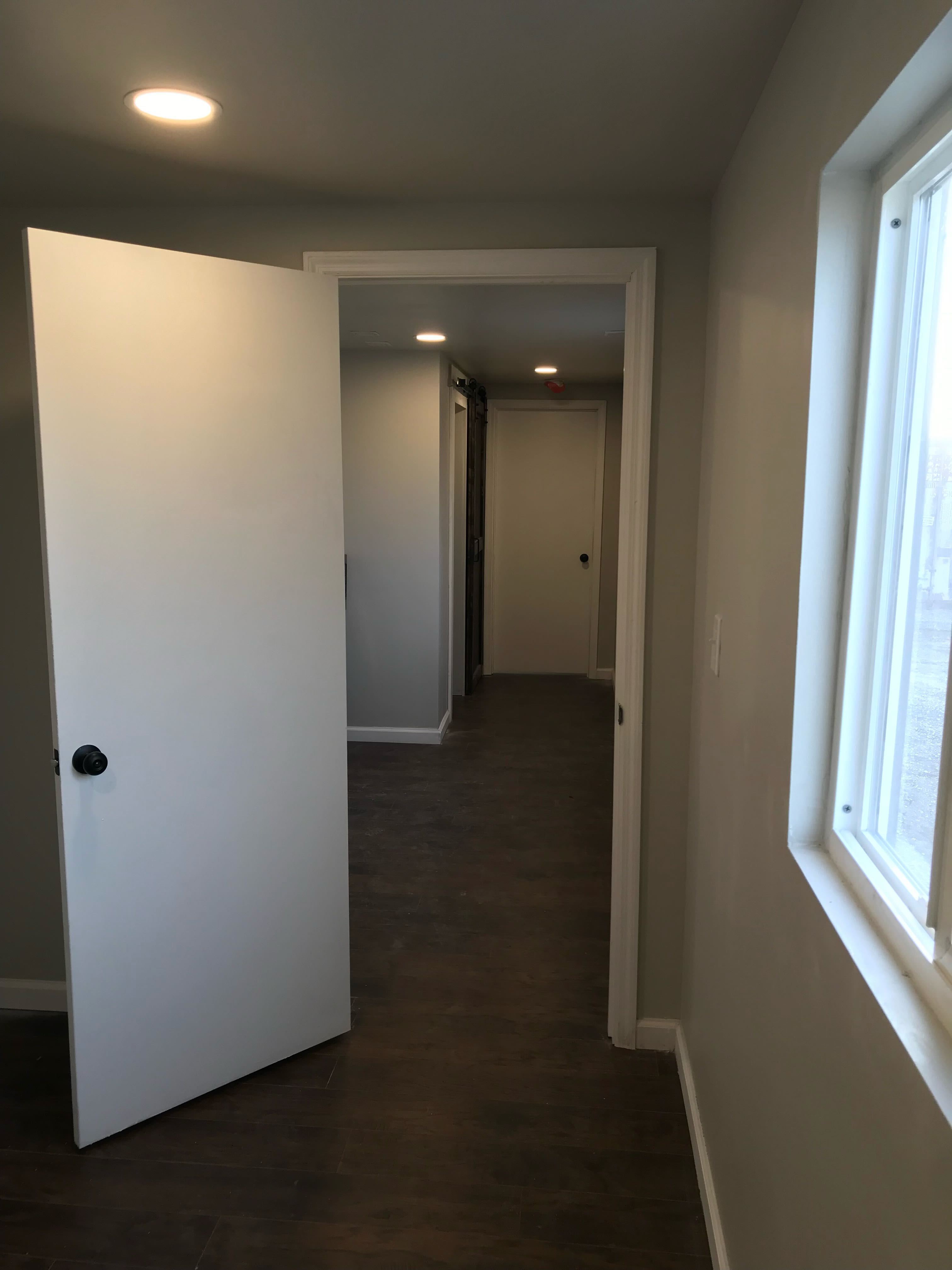

Interior Doors:
36” x 80” Barn Door – 0.25” x 4’ x 8’ Poplar Sanded Plywood trimmed with 1”x 4” Pine attached by Sliding Track Hardware Kit
36” x 80” 6 panel Hollow Core MoldedComposite Single Pre-hung Interior Door
Interior Framing: 2”x 4” Wood Framed Stud Walls throughout unit.
Insulation: ASTM C518 R value
Ceiling / Floor: R-22 Closed Cell FoamInsulation
2-ComponentPoly/Iso closed-cell polyurethane spray foam.
Walls: R-15 Faced Batt InsulationFiberglas Batt insulation, Green guard gold certified
Wall Systems:
Finish Level: Level 4
Drywall Type 1: 0.5” Fire resistant gypsum board; 0.5”.
Drywall Type 2: 0.5” Water resistant gypsum board.
Flooring: Laminate Flooring - Waterproof for 24 hours; 10 mm total thickness including foam backer and Vapor Barrier.
Half - Bathroom:
24” Vanity with Stainless Steel bowl Single Lever Handle Lavatory Faucet
Ergonomic Toilet 1.6 GPM
40CFM Exhaust Fan, UL Listed and HVI-2100 Certified.
Kitchen:
Mini-Fridge
Low Watt Microwave
Drop-in 2 Burner Propane Cooktop
HVAC:

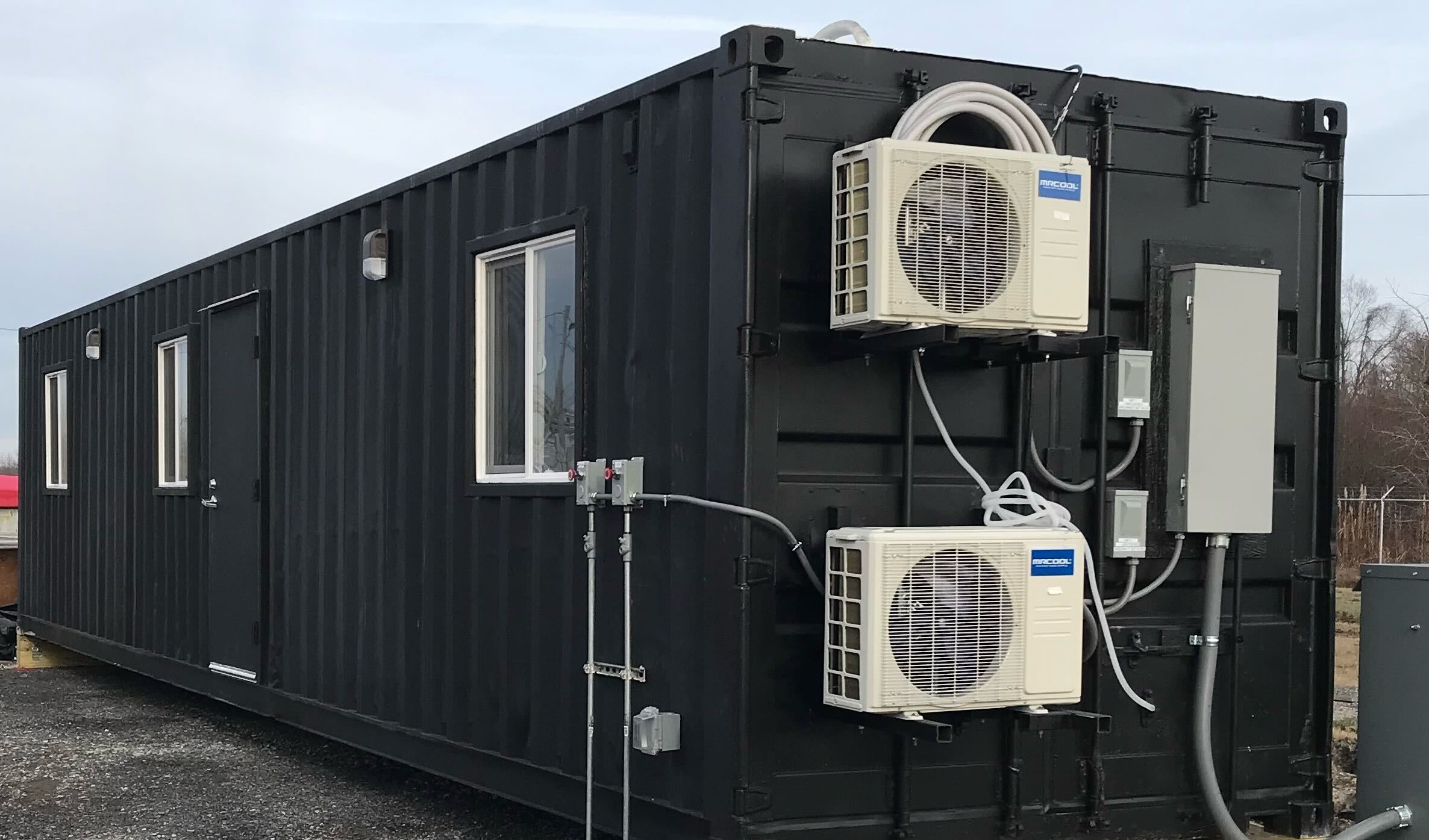

9,000 BTU Mini-Split Unit with an energy efficient 22 SEER Rating Dual split, Wall Mounted, with Remote Control and Wifi Control.
Water Heater:
Propane Tankless Water Heater
Water Pressure Rating: 50 psi (max 80 psi)
Water Piping: High-Density Cross-Linked Polyethylene
(HDPE) PEX piping
Waste Piping: Highly-Durable Schedule-40 PVCPiping
Waste Openings: 1 RV Connection
Vent Openings: 3
Water Intake Port: 1 RV Connection
Shut Off-Valves: At all fixtures
Plumbing Testing:
Water Supply Pressure Test - IPC 312.5
Water Tightness Test - IRC P2503.5.2
Testing of Backflow Prevention Assemblies- IPC 312.9
DWV System Test - IPC 312.2 and 312.3
Window Leak Test - Internal Standard8.6.2
50 RV Hook-Up: 6-Space, 6-Circuit Outdoor Main Breaker Plug-On Neutral Load Center.
Hardwired Smoke and Carbon Monoxide Detectors: Photo electric smoke sensor and carbon monoxide detectors.Tamper-resistant with 9V backup battery.
Ceiling Lights: 6" Slim Recessed Lighting with junction Box
Exterior Lights: Exterior LED Wall MOD Sconce Light
Exterior: Duplex Receptacle: Weather resistant outdoor 20 amp 125 volt self grounding outlet
Interior Duplex Receptacle Outlets: 15 amp, 125 volt tamper resistant outlets.
Interior Duplex GFCI Receptacle Outlets: 15 amp, 125 volt tamper resistant outlets.
Range Receptacle: Wall mounted, 50 amp, 125/250 volt, Nema 14-50R.
Refrigerator Receptacle: Wall mounted, 15 amp, 125 volt.
Television/Data Jacks: Category 5e jack for ethernet, internet, phone. UL listed 2.4 GHz plated jack for A/V components, from standard TV to satellite TV.
Electrical Testing:
Dielectric Test - NEC 550.17 a
Continuity Test NEC 550.17 b
Polarity Test NEC 550.17 b
Electrical Operational Test NEC 550.17 b
