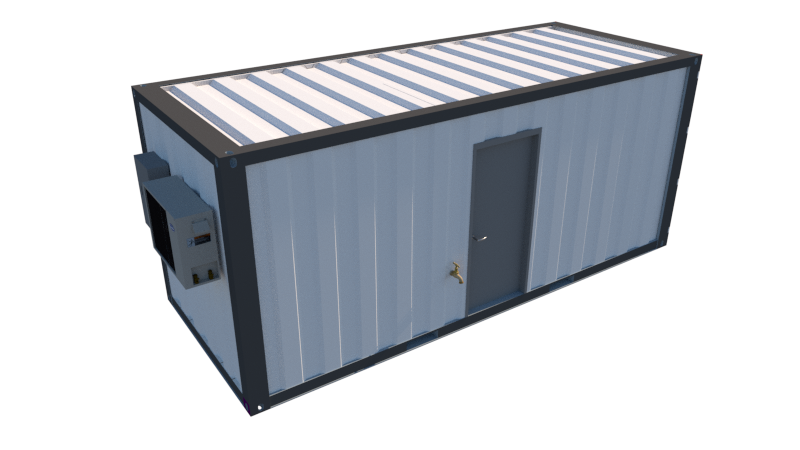

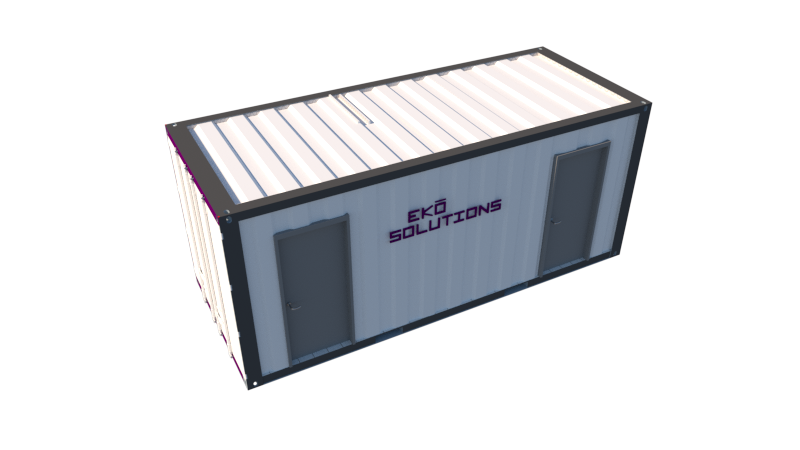

Cost: $43,500
Square Footage: 160 square foot

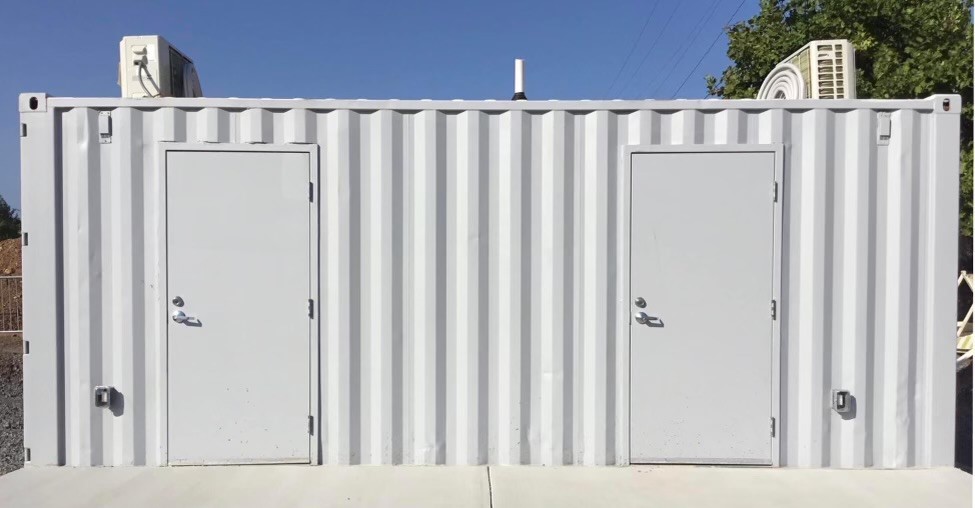

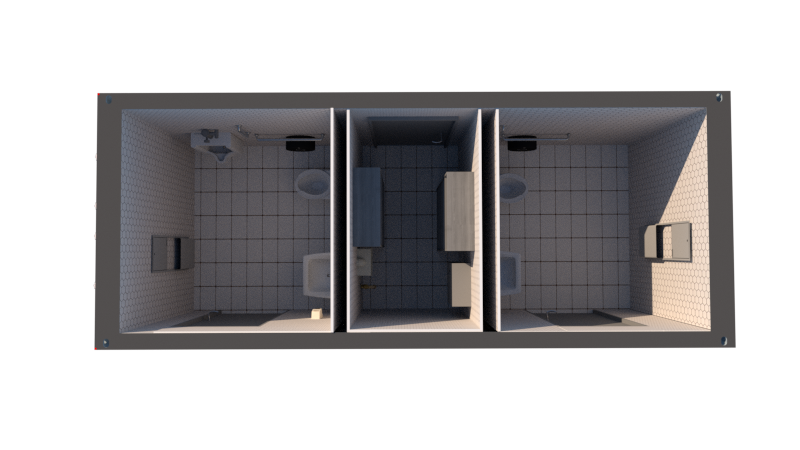

Details:2 ADA compliant bathrooms, 1 storage area
Your customers and visitors will appreciate a safe and secure place to use the restroom at your next event or gathering. This unit is the ADA compliant.
Dimensions:20’ L x 8’ W x 8’ H
ekō Homes are built with an up-cycled shipping container consisting of corrosive resistant high-strength, low-alloy, corten steel coated with a marine grade enamel. Upon arrival into the manufacturing facility, The container is touched up with wire brush and sanded removing any impurities before being cleaned. Once cleaned a primer coating is added to the container prior to an added coat of exterior grade paint.
Container Types Utilized:
20’ x 8’ x 8’ ISO Container
Dimensions: (1) 20’ ISO Container
20’ Storage Unit
Exterior Length: 20’
Exterior Height: 8’
Exterior Width: 8’
Interior Length: 18.875’
Interior Height: 7.875’
Interior Width: 7.16’
Weight: ~7,000lbs –Finished Weight)
14-gauge vertically continuous corrugated steel panels.
7-gauge tubular, cold-formed channel section steel.
14-gauge die-stamped steel sheets.
4-gauge single piece, pressed opensection steel.
18 x 8 gauge pressed channel section steel.
1” marine grade plywood
Cast steel corner castings produced according to ISO 1161:1984. Castings can be used to lift and move the container during the setting period of the build. As well as locking the container into its foundation.
ISO container slab level lock type 4 welded to an 8” embedment plate with ¾” x 5” nelson studs.
Original 11-gauge corten steel double outswing doors with 270° swing radius.
Exterior: Sherwin Williams: DTM Metal Acrylic Bonding Primer
Direct to Metal water-based acrylic Bonding Primer applied to the exterior of the container as a protective coating to maintain long life of the container.
Sherwin Williams: Exterior Grade Multi-Acrylic Paint – Multiple colors and finishes available.
Interior: Sherwin Williams: Pro Mar 200 Zero VOC Latex Paint
Complies with LEED, MPI, GREEN GUARD, Environmental Institute (GEI) and other green guidelines and regulations. Anti-microbial agents inhibit the growth of mold and mildew on the paint surface.
•Metal Built Rite Weld N Go 36” x 80” Fire-Rated Gray Left-Hand Flush Steel Pre-hung Commercial Door with Welded Frame, Deadlock and Hardware.
••ADA-Grab Rails
••Ergonomic Toilet 1.6 GPM 12-in Rough-In Size ADA Compliant
••Paper Towel Dispenser and Waste Receptacle
••18 KW Tankless Water Heater
••24” Vanity with Stainless Steel bowl SingleLever Handle Lavatory Faucet
••50 CFM Exhaust Fan, UL Listed and HVI-2100 Certified.
••9,000 BTU Mini-Split Unit with an energy efficient 22 SEER Rating Dual split, Wall Mounted, with Remote Control and Wifi Control.
Interior Framing: 2”x 4” Wood Framed Stud Walls throughout unit.
Insulation: ASTM C518 R value
Ceiling / Floor: R-22 Closed Cell Foam Insulation
2-Component Poly/Iso closed-cell polyurethane spray foam.
Walls: R-15 Faced Batt Insulation Fiberglas Batt insulation, Green guard gold certified
Wall Systems:
Trusscore Plastic Wall System: 0.5” Board.
Flooring: 4 Mil Epoxy Flooring
Water Pressure Rating: 50 psi (max 80 psi)
Water Piping: High-Density Cross-Linked Polyethylene (HDPE) PEX piping
Waste Piping: Highly-Durable Schedule-40 PVC Piping
Waste Openings: 2 (Stemmed Down Through Floor)
Vent Openings: 3 (Stemmed Down Through Floor)
Water Intake Port: 1 (Stemmed Down Through Floor)
Shut Off-Valves: At all fixtures
Plumbing Testing:
Water Supply Pressure Test - IPC 312.5
Water Tightness Test - IRC P2503.5.2
Testing of Back flow Prevention Assemblies- IPC 312.9
DWV System Test - IPC 312.2 and 312.3
Window Leak Test - Internal Standard 8.6.2
200 Amp Load System: 20-Space, 40-Circuit Outdoor Main Breaker Plug-On Neutral Load Center.
Hardwired Smoke and Carbon Monoxide Detectors: Photo electric smoke sensor and carbon monoxide detectors.Tamper-resistant with 9V backup battery.
Ceiling Lights: Barrina LED T5 Integrated Single Fixture
Exterior Lights: Exterior LED Wall Sconce Light
Exterior: Duplex Receptacle: Weather resistant outdoor 20 amp125 volt self grounding outlet
Interior Duplex GFCI Receptacle Outlets: 15 amp, 125 volt tamper resistant outlets.
Electrical Testing:
Dielectric Test - NEC 550.17 a
Continuity Test NEC 550.17 b
Polarity Test NEC 550.17 b
Electrical Operational Test NEC 550.17 b
